| Table | Entity | Remark |
|---|---|---|
| AUTHZ_USER_PROFILE | AuthorizerTokenEntity | user level，用户信息表 store user token information from channel for SSO consume.
|

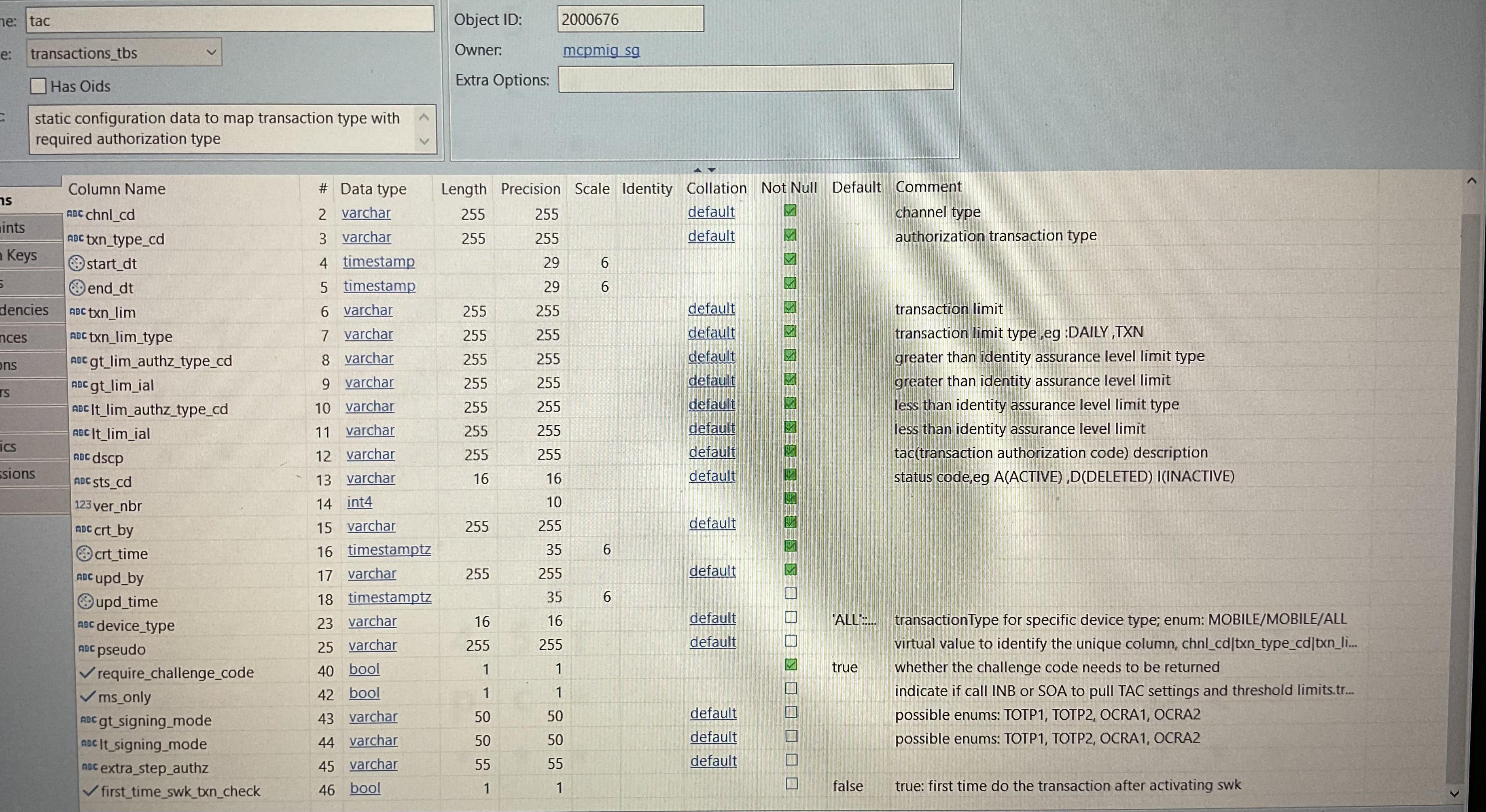

| TAC | TacEntity | 交易类型配置表（交易类型和授权类型的配置表），Channel and Transaction Type level static configuration data to map transaction type with required authorization type. 包括chnl_cd，交易类型码txn_type_cd，交易限额，限额外授权类型，限额内授权类型，是否需要Challenge code，限额外signing mode， 限额内signing mode，是否激活SWK后的第一笔交易first_time_swk_txn_check。
|
| CUSTOMER_TAC | Customer level. Resynced data from INB/BV/MB database describing preferred authorization by customers.
| |

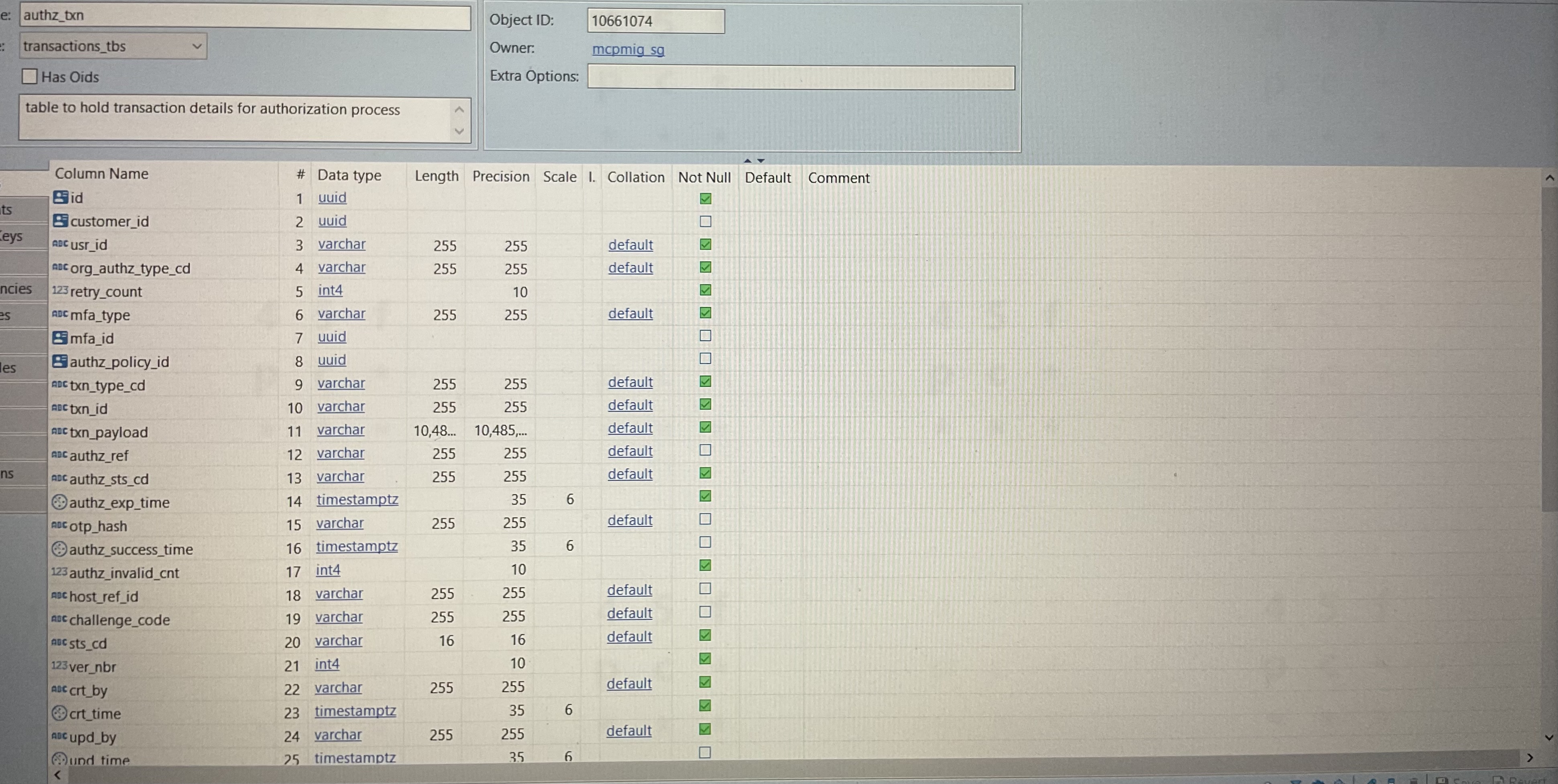

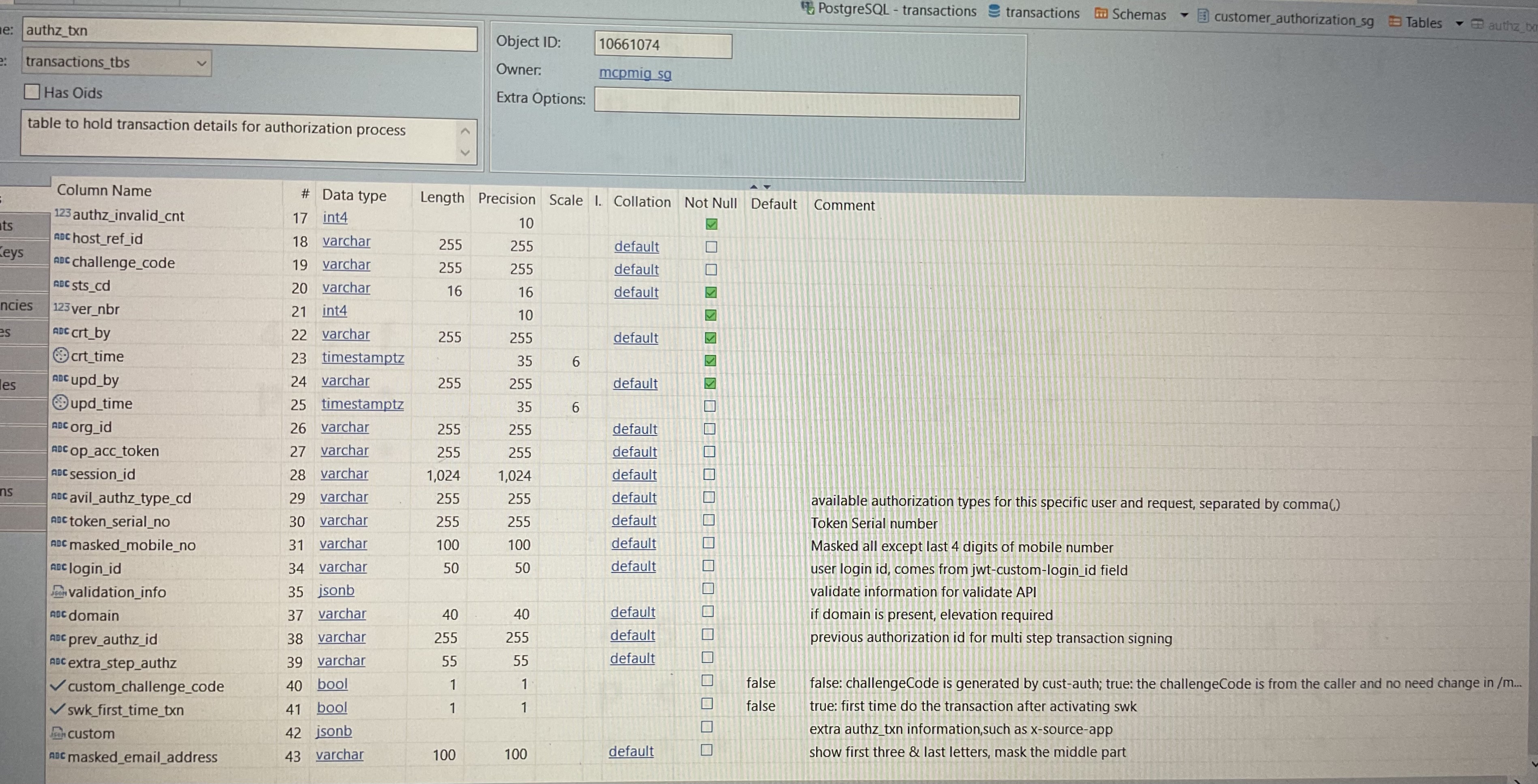

| AUTHZ_TXN | AuthorizationTransactionEntity | 交易信息表，transaction level， including retry_count, mfa_type,
|

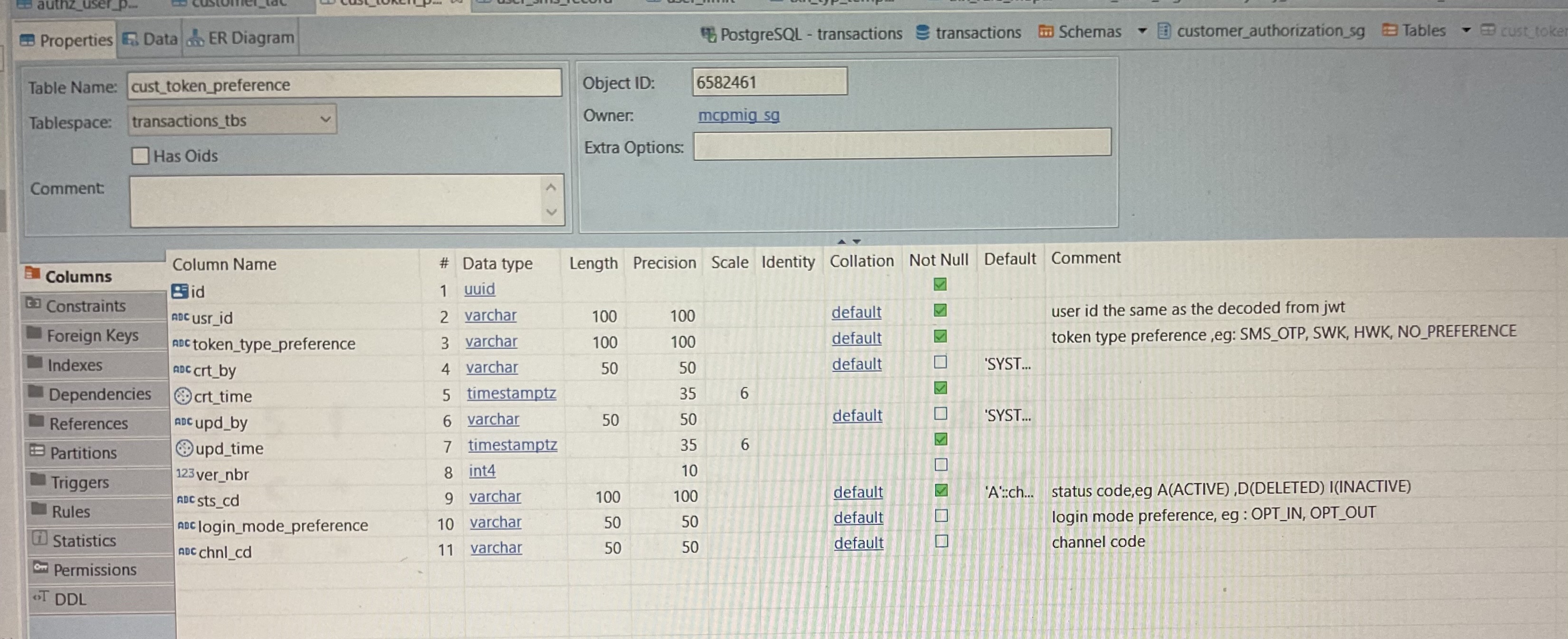

| CUST_TOKEN_PREFERENCE |
| |

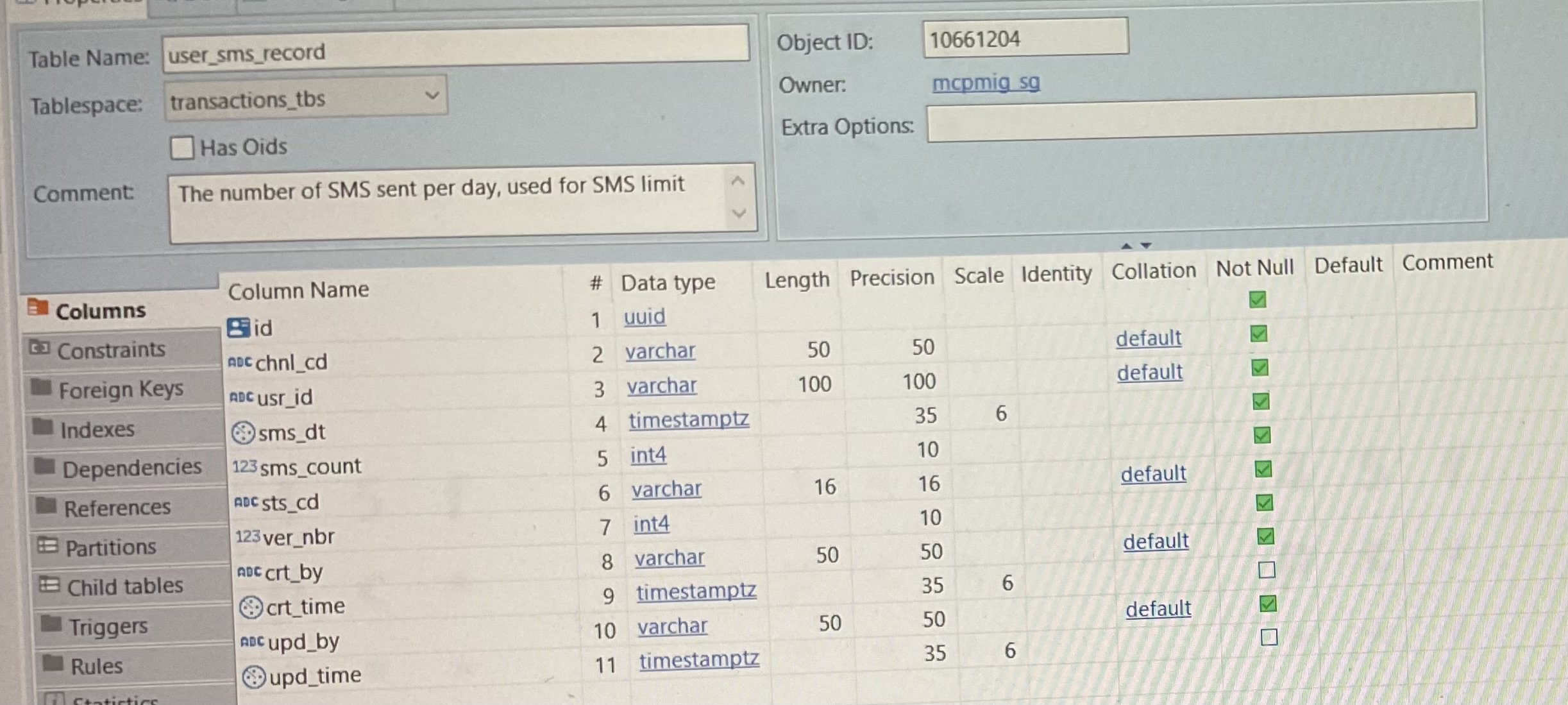

| USER_SMS_RECORD | store the number of SMS sent per day, used for SMS limit, user and channel level. sms_cocunt
| |
| User_limit | store customer counter.
| |

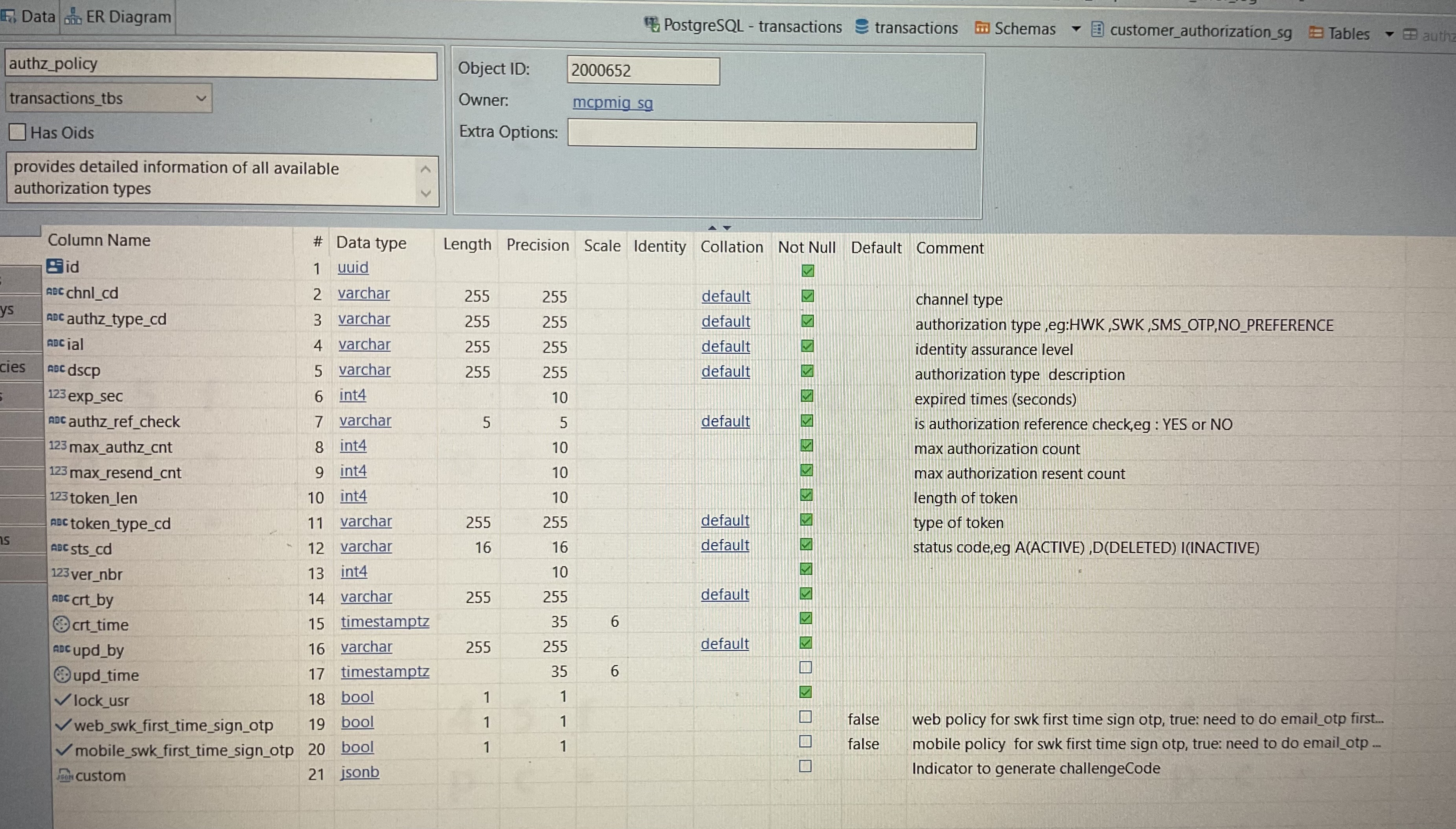

| AUTHZ_POLICY | AuthorizationPolicyEntit | 授权类型的配置表，Channel and Auth Type level provide detailed information of all available authorization type. 包括chnl_cd，授权类型authz_type_cd，web_swk_first_time_sign_otp, mobile_swk_first_time_sign_otp max_resend_cnt: TXN level limit. custom.limits.max_resend_cnt: user level limit.
|
| txn_typ_template_mapping | provide detailed information of transaction type to template id mapping to derivate the notification.
| |

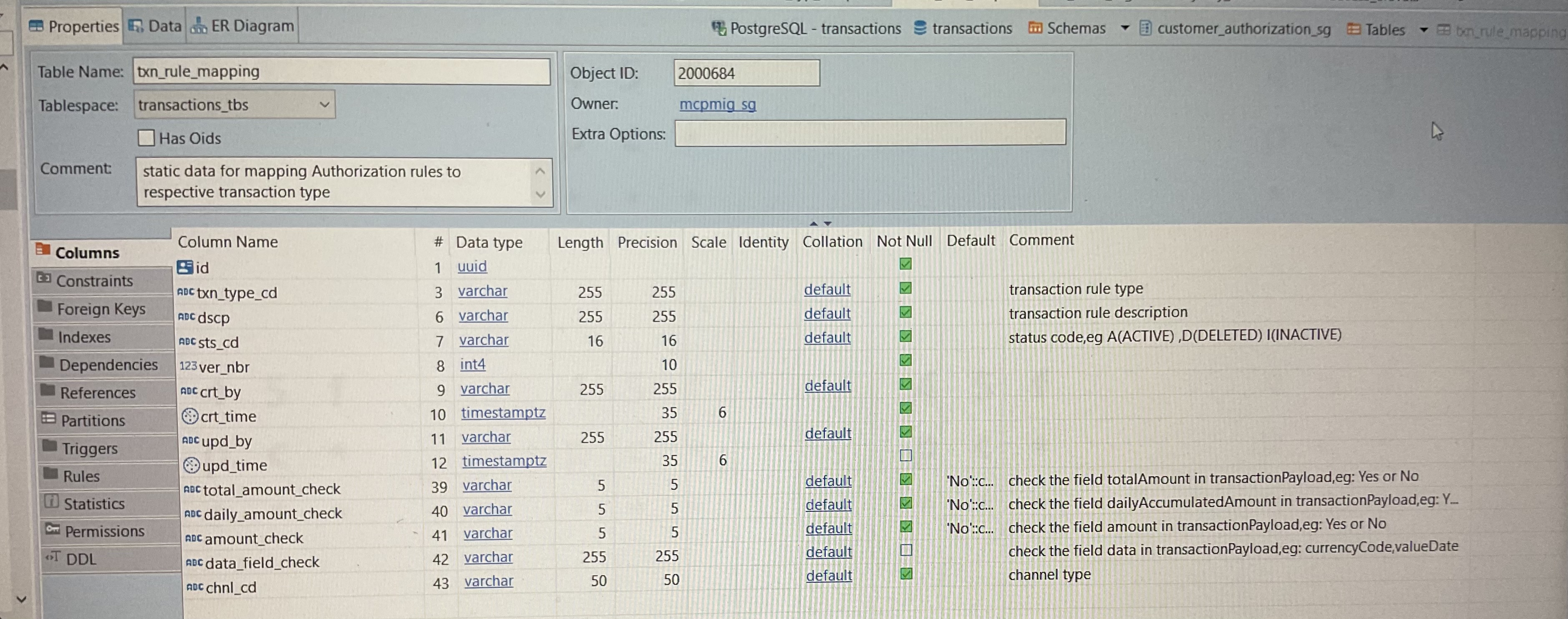

| txn_rule_mapping | static data for mapping Authorization rules to respective transaction type.
| |

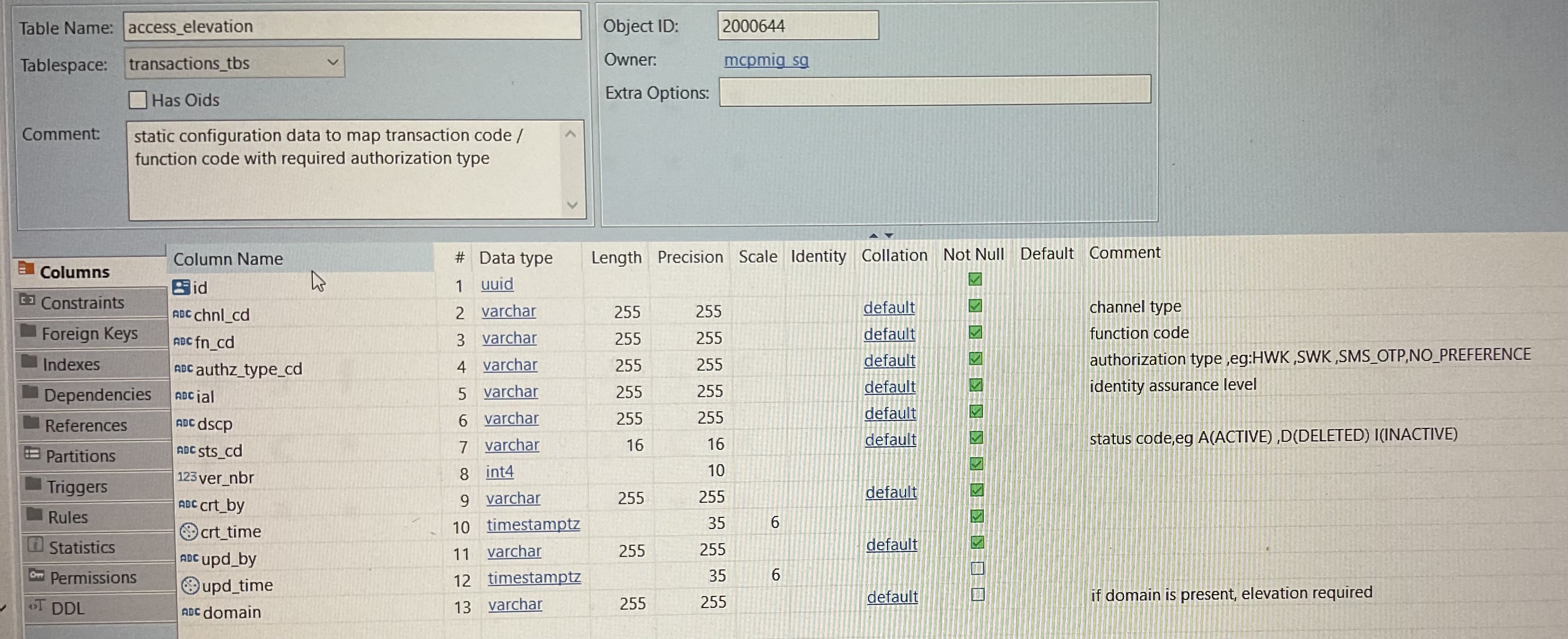

| access_elevation | 用于2FA（access-elevation）的授权类型配置表，Channel和Function Code level。 static configuration data to map transaction code/function code with required authorization type.
| |
| t_error_log |
|
